LED Posters.
LED PostersNo integration project. Just plug it in.
- mm portrait
- 640 × 1920
- Nits outdoor
- 5,500
- Option
- IP65
Quoted per unit
Posters · Overview
LED Posters overview

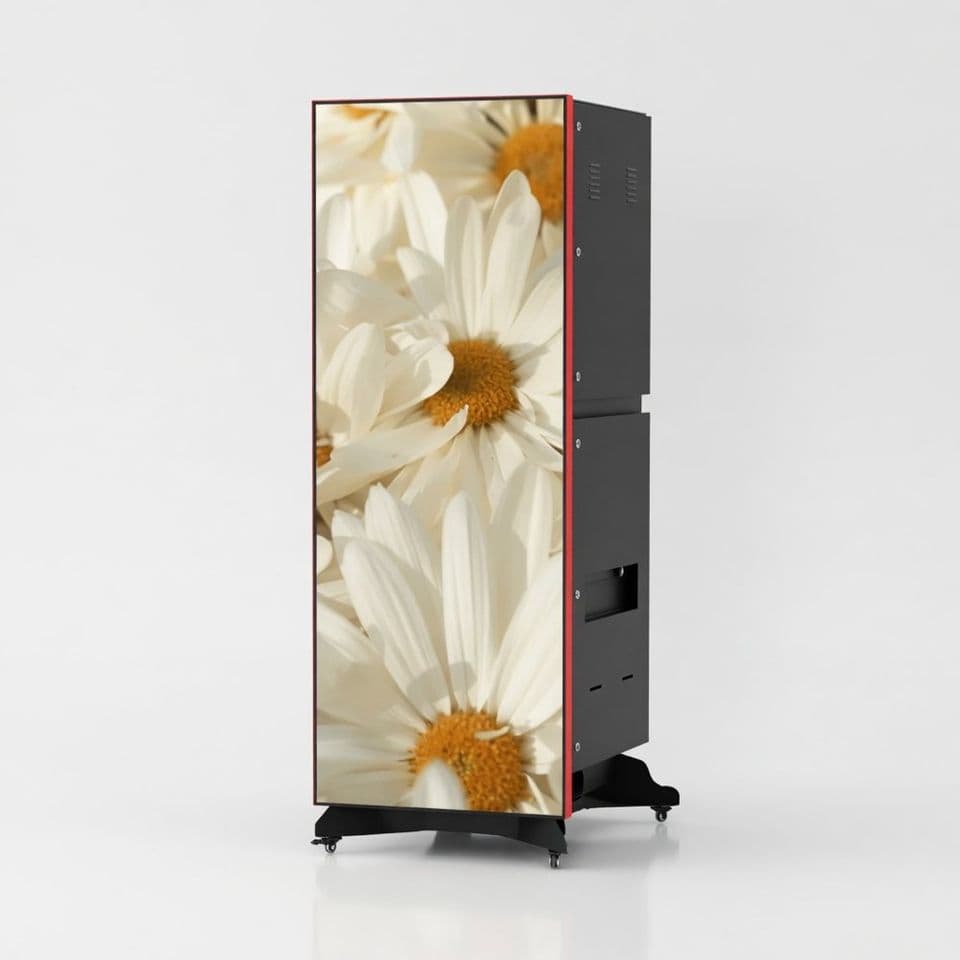

640 × 1920 mm portrait units, indoor and IP65 outdoor. Foldable, linkable and plug-and-play — for storefronts, lobbies and queue lines.
Best for
Storefronts, lobbies and queue lines.
See it by industryAt a glance
- Pixel pitch
- P2.5–P4
- Size
- 640 × 1920 mm portrait
- Brightness
- 5,500 nits outdoor
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
Build it
Build the wall, tile by tile.
Build the wall, tile by tile.Pick a pitch and a grid of cabinets to see the real size, the canvas it lands on and the power it draws.
Drawn to scale beside a 1.75 m person; lines mark poster seams. The two ends of the P2.5–P4 range. Posters link side by side into one canvas.
Build your wall
Pixel pitch
- Wall size
- 0.64 m × 1.92 m
- Canvas
- 256 × 768
- 640 × 1920 mm portrait
- 1 poster
- Area
- 1.2 m²
- Power, average
- ≈ 370 W
- Closest comfortable view
- ≈ 2.5 m
Budget guidance
Quoted per unit
Install typically adds 15–30% on top of hardware; power and heat load are itemised in every quote. An estimate from published figures, not a quote.
What it is
A wall built from tiles, sized to your room.
A wall built from tiles, sized to your room.An LED video wall is modular cabinets assembled to any shape. Because you build from tiles rather than buy a fixed panel, the canvas matches your architecture — and with 16:9 COB cabinets it lands on native 1080p or 4K with no scaling.
- Front-service magnetic modules — flush wall mount, no rear access corridor to design around.
- Fanless COB below 20 dB — silent enough for boardrooms, churches and studios.
- Broadcast refresh — 3,840 Hz standard, 7,680 Hz for camera-critical rooms.
Choosing
COB, SMD or GOB — and why it matters.
COB, SMD or GOB — and why it matters.LED packaging drives your maintenance bill more than the brand on the box. COB encapsulates the diodes under a flat resin surface: deepest blacks, near-zero pixel failures, wipe-clean and knock-resistant, at a 40–80% premium. SMD is cheapest and field-repairable diode by diode. GOB adds epoxy armour to SMD for rental and high-traffic spaces.
- Under 2 m viewing → P0.9–P1.5 COB. 2–4 m → P1.5–P1.9. Lobby at 5 m+ → P2.5–P4 SMD is honest value.
- Control rooms and 24/7 duty justify COB on failure rate alone.
- Touring and school use: GOB, every time.
Specifications
The numbers that decide the deal.
The numbers that decide the deal.Design rule: minimum viewing distance in metres ≈ pixel pitch in millimetres. We size walls to land on native 1080p or 4K rather than an awkward in-between resolution.
10 specifications
| Specification | Value |
|---|---|
| Pixel pitch | P2.5–P4 |
| Size | 640 × 1920 mm portrait |
| Brightness | 5,500 nits outdoor |
| Refresh rate | 3,840 Hz |
| Contrast | 5,000:1 |
| Service | Front |
| Power (average) | ~300 W/m² |
| Environment | Indoor, IP65 outdoor option |
| Format | Foldable, linkable, plug-and-play |
| Warranty | 3 years |
Budget guidance
Turnkey benchmarks: conference room walls $50–120K; 12 × 7 ft lobby wall $60–100K; church sanctuary packages $40–180K; a P2.5 3 × 2 m retail wall $18–27K. Install typically adds 15–30% on top of hardware, and power and heat load are itemised in every quote.
CE / FCC / RoHS conformant hardware, an ISO 9001 supply chain and a written spec with every quote.
Download the PDF presentationWhy it wins
The details AV managers and architects check.
The details AV managers and architects check.Front service, flush mount
Magnetic modules pull from the front, so the wall sits tight to the structure with no rear maintenance corridor eating floor area.
Silent by design
Fanless COB cabinets at or below 20 dB — no HVAC-style hum behind a presenter or a sermon.
Broadcast-safe
3,840–7,680 Hz refresh eliminates banding on livestream and studio cameras from day one.
Five-year warranty option
Longer than the typical LED warranty, manufacturer-backed and subject to terms, with spare modules stocked against your specific cabinet type.
Worship package
600–800 nit anti-glare walls with one-click lyrics and scripture switching, specced for wide seating angles.
Native resolution math
16:9 tiles assemble to exact 1080p or 4K canvases, so content maps 1:1 with no scaler softening.
Where it works
From sanctuary to superhighway.
From sanctuary to superhighway.Any surface where your message has to carry across a room — or a car park.
- Church sanctuaries
- Corporate lobbies
- Boardrooms
- Sports bars
- Retail flagships
- Control rooms
- DOOH billboards
- Highway gateways
- Stage & event rental
- Storefront LED posters
- Cinemas
- Stadium concourses
LED Posters is best for
Storefronts, lobbies and queue lines.
Four cabinet families, one ecosystem.
One control ecosystem, four very different jobs — from a silent boardroom wall to a touring stage.
Install notes
From brief to switch-on.
From brief to switch-on.- 01
Three numbers
Room size, viewing distance and content type — that is all we need to spec and price your wall.
- 02
Tile layout
We model the tile layout before quoting, with power and heat load itemised for your electrician and mechanical engineer.
- 03
One to three days
A typical indoor wall goes up in one to three days on site once structure and power are in place.
- 04
Engineer on call
Up to five years of cover on cabinet lines, spare modules stocked per project, support that reaches an engineer directly.
FAQ
What buyers ask first.
What buyers ask firstSomething else? Email business@smartechllc.tech — we reply within one business day.
Minimum comfortable viewing distance in metres roughly equals the pitch in millimetres. A boardroom viewed from 2 m wants P1.2–P1.9; a lobby seen from 5 m is perfectly served by P2.5–P4. Going finer than your room needs is the most common way to overspend on a video wall.
COB gives the deepest blacks, a very low pixel-failure rate, a wipe-clean sealed surface and the lowest maintenance cost — at a 40–80% premium. SMD is cheaper and repairable diode by diode. GOB sits between them with epoxy armour for rental and high-touch rooms. We quote the two that fit your use and show the five-year cost, not just the purchase price.
Budget 30–60 W per square foot with dedicated circuits sized to peak rather than average draw. Heat load matters for room HVAC on anything above about 10 m², and both figures are itemised in the quote so your electrician and mechanical engineer are not guessing.
Up to five years on our cabinet lines, double the 2–3 year norm, with spare modules stocked per project so swaps are fast. Support reaches an engineer directly rather than a ticket queue.
Yes. Rental cabinets curve with adjustable locks, and fixed installs can be built to arcs, columns and irregular outlines using custom edge cabinets. We model the tile layout before quoting so you see exactly where the seams land.
A typical indoor wall is one to three days on site once structure and power are in place. The longer path is usually structural steel and electrical work, which we scope in the survey so the trades are sequenced properly rather than discovered on the day.
Keep exploring
More from Video Walls.
Same line first, then the rest of the range — every product specified to your space from San Diego, CA and our Lynnwood, WA showroom.
Broadcast-safeVideo Walls
Fine-Pitch COB Video Walls
Every pixel. Perfectly placed.
Conference walls $50–120K turnkey
Video Walls
Outdoor IP66 Cabinets
Readable at noon. Built for winters.
Quoted per wall
Video Walls
Stage & Event Panels
Hang it. Stack it. Curve it. Pack it.
Quoted per package
FlagshipHolographic & Transparent
Transparent LED Mesh Panels
Invisible when off. Unmissable when on.
From $232/ft²
No drillingLED Film
Self-Adhesive LED Film
Peel. Stick. Broadcast.
From $297/ft²
Bends to curvesHolographic & Transparent
Holographic Flexible Film
Content that floats in the glass.
From $357.68/ft²
Start a project
Get the wall your room actually needs.
Get the wall your room actually needs.Room size, viewing distance and content type — that is all we need to spec and price your wall.
What you get back
Within one business day: recommended pitch and LED technology, exact wall dimensions in tiles, power and heat load, and a budget range.
- Phone
- +1 (858) 299-1959
- Hours
- Mon–Fri, 9am–5pm PT
LED PostersQuoted per unit
Start a project
