Transparent LED Mesh Panels.
Transparent LED Mesh PanelsInvisible when off. Unmissable when on.
- Transparent
- 55–70%
- Peak nits
- 5,500
- Viewing
- 5–30 m
From $232/ft²
Rigid mesh · Overview
Transparent LED Mesh Panels overview
LED strips in aluminium frames on 500 × 1000 mm cabinets, fixed behind the glass. You see straight through the gaps — the street sees a bright, solid image. The workhorse for big windows, atriums and 5–30 m viewing.
Best for
Big windows, atriums and sun-exposed frontages where you cannot drill the glass.
See it by industryAt a glance
- Transparency
- 55–70%
- Brightness
- 4,000–5,500 nits
- Pixel pitch
- P3.91 / P7.81
- Cabinet
- 500 × 1000 mm, aluminium frame
- Weight
- ~10 kg/m² (framed)
Proof
The same showroom glass, off and on.
The same showroom glass, off and on.Curtain-wall glass that keeps selling after closing time. Drag the handle — the cars stay in view behind the content the whole way across.
Balustrades, curtain walls and atrium glass are the highest-impact surfaces in any retail building — and the ones nobody is using yet.
Drag the line, or use the arrow keys. Left of the line the display is off; right of it, on.
Your glass, in numbers
Put it on your glass.
Put it on your glass.Drag to the size of your window and read the load, the power and an estimated price — worked out from this product's published pricing.
Drawn to scale beside a 1.75 m person. Strip spacing is exaggerated so you can see it; lines mark panel seams.
Your glass
Pixel pitch
- Area
- 200 ft²
- Screen weight, framed
- ≈ 410 lb
- Power, average
- ≈ 4.1 kW
- 500 × 1000 mm
- 52 cabinets
- Canvas at P7.81
- 781 × 390 px
- Closest comfortable view
- ≈ 26 ft
Fixed behind the glass to the frame or on standoffs — the glazing carries little or no load.
Indicative hardware
$46,400–$59,400
Installed-market band ($232–297/ft²), before install and freight. An estimate, not a quote — your written spec replaces it.
What it is
A screen you can see straight through.
A screen you can see straight through.Transparent LED puts the pixels on narrow strips with clear space between them. Far enough away the eye fills the gaps and reads a solid bright image; up close, and from inside, the glass is still glass. Nothing is projected and nothing is printed — it is a real emissive display that happens to be mostly air.
- Behind the glass, not on it — mounted to the frame or hung on standoffs, so the glazing carries little or no load.
- Bright enough for daylight — 3,000–5,500 nits depending on family and orientation.
- Runs cool and quiet — around 200 W/m² on average content, no fans on film products.
The effect
Why it stops people on the pavement.
Why it stops people on the pavement.A static vinyl covers your window. A transparent LED display keeps the window and adds motion on top of it — and motion tends to draw more attention than a static graphic in a window. The content appears to hover in front of your merchandising rather than hiding it.
- Campaigns change from a phone — no reprints, no fitters, no downtime.
- Day and night modes: bright, high-contrast graphics by day, cinematic content after dark.
- Flicker-free at 3,840 Hz, so every phone video shot in front of it looks clean.
Hold it in your hand
What it looks like up close, and installed.
What it looks like up close, and installed.Panel construction, and the same technology running on a real curved glass partition — photographed, not rendered.

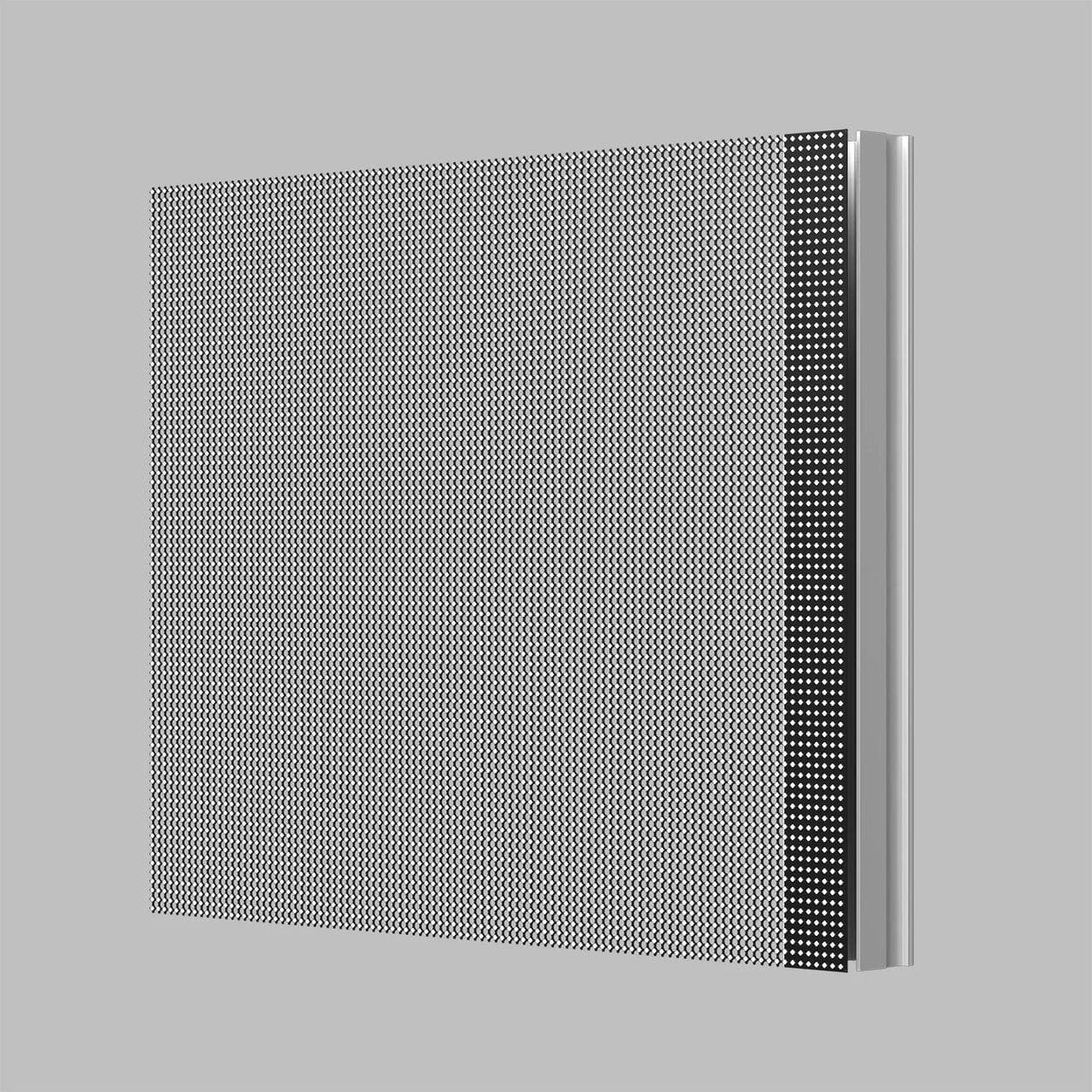

75 mm
Frame depth on a mesh cabinet. The strips carry the pixels; everything between them is open.
Switched off
A real install with the screen dark — the mesh all but disappears into the glazing.
Switched on
Same class of screen at full output. Content reads hard from across the room.
Specifications
The numbers that decide the deal.
The numbers that decide the deal.Sizing rule of thumb: minimum viewing distance in metres ≈ pixel pitch in millimetres. Daylight-facing storefronts need 3,000+ nits, and tinted glass pushes that higher.
11 specifications
| Specification | Value |
|---|---|
| Transparency | 55–70% |
| Brightness | 4,000–5,500 nits |
| Pixel pitch | P3.91 / P7.81 |
| Cabinet | 500 × 1000 mm, aluminium frame |
| Weight | ~10 kg/m² (framed) |
| Frame depth | 75–100 mm |
| Refresh rate | 3,840 Hz |
| Power (average) | ~220 W/m² |
| Rated lifetime | 100,000 h |
| Control | Novastar / Colorlight — cloud, 4G, Wi-Fi, USB |
| Warranty | 3 years |
Budget guidance
Holographic film is $357.68/ft² at P3.91 on our U.S. price guide — an installed package priced on finished display area, with shipping, installation and three promo videos included; P6.25 and P10 are quoted per project. Mesh runs $232–297/ft² installed-market; hologram fans from a few hundred dollars to around $5K for premium synced systems. A typical small storefront project lands at $10K–20K all in, quoted against a written spec.
CE / FCC / RoHS conformant hardware, an ISO 9001 supply chain and a written spec with every quote.
Download the PDF presentationWhy it wins
Six reasons buyers choose transparent over vinyl.
Six reasons buyers choose transparent over vinyl.The window keeps working
Up to 95% transparency means your merchandising, your daylight and your view survive. A solid LED wall in the same opening kills all three.
Nothing structural changes
Film installs mount to the existing frame with no steel. Landlords, heritage frontages and glass curtain walls all clear far more easily.
Motion beats static
Animated content in a window tends to draw more attention than printed graphics — and it changes in seconds instead of a reprint cycle.
Camera-safe by default
3,840 Hz refresh means no banding on phone video or broadcast cameras. Essential anywhere customers film.
One CMS, every window
Push one campaign to every storefront you operate from a single dashboard, scheduled by daypart, with local override where you need it.
Serviceable in place
Strip- and module-level replacement with 5% spares stocked per project. No scaffolding, no screen-wide swap-outs.
Where it works
Built for glass-fronted business.
Built for glass-fronted business.Anywhere the view through the glass is worth as much as the message on it — retail, hospitality, showroom or corporate.
- Luxury retail windows
- Car showrooms
- Hotels & casinos
- Restaurant frontages
- Real-estate listing windows
- Mall atriums
- Glass balustrades
- Museums & exhibitions
- Curtain-wall media facades
- Trade-show stands
- Bar & club entrances
- Airport retail
Transparent LED Mesh Panels is best for
Big windows, atriums and sun-exposed frontages where you cannot drill the glass.

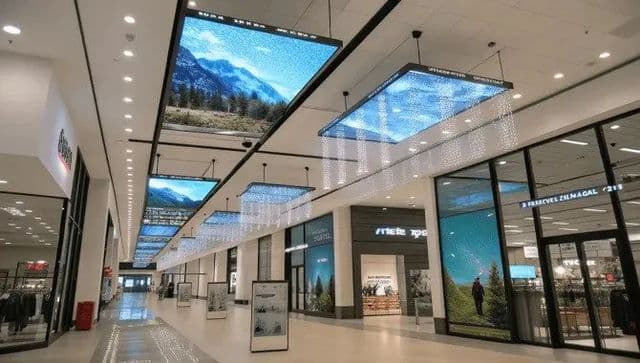

Transparent LED in the wild.
Manufacturer installations and SmarTech visualisations across retail, corporate, hospitality and event environments.
Install notes
From brief to switch-on.
From brief to switch-on.- 01
Send a photo
A photo and the width of the window is enough for a first spec — no formal RFQ required.
- 02
Written spec
Within one business day: recommended family, pixel pitch, brightness, transparency grade, load on glass and a budget range.
- 03
Built to measure
Stock film and fans ship in days; custom-cut film and framed mesh run 20–25 business days from confirmed measurements, plus freight.
- 04
Serviced in place
Strip- and module-level replacement with 5% spares stocked per project — no scaffolding, no screen-wide swap-outs.
FAQ
What buyers ask first.
What buyers ask firstSomething else? Email business@smartechllc.tech — we reply within one business day.
Yes. From inside you look through the back of the screen to the street. Transparency runs 55% on dense mesh up to 95% on wide-pitch film — the higher the transparency, the wider the pixel pitch and the further back your audience needs to be.
We spec 3,000+ nits against your glass orientation and tint, and up to 6,000 for direct-sun frontages. Low-E and tinted glazing can absorb around a third of the output, which is exactly why we ask for a photo of the actual window before putting a brightness figure in writing.
Roughly 200 W/m² on average content — a 4 m² window is about one domestic space heater. Peak white draws roughly double that, so we specify a dedicated circuit sized to peak, not average.
Film is thin, light, flexible and hangs off the frame — best for existing glass, curves and installs where nobody wants structure. Mesh is a framed cabinet system: less transparent but brighter and more robust, better for very large spans, outdoor-facing curtain walls and permanent architectural integration.
Hologram fans create a genuine floating 3D effect in mid-air and draw a crowd, but they show one object on a dark background rather than full-frame content, and they need dim ambient light to read well. Most clients run fans at an entrance or a stand as an attention device and transparent film for the actual campaign.
Window-facing motion content can count as regulated signage in some municipalities, and listed frontages have separate rules. We run the check during quoting so any restriction shows up before you commit.
Stock film and fan configurations ship in days. Custom-cut film and framed mesh typically run 20–25 business days from confirmed measurements, plus freight. We confirm dates in the quote and flag anything that would miss a store opening.
Keep exploring
More from Holographic & Transparent.
Same line first, then the rest of the range — every product specified to your space from San Diego, CA and our Lynnwood, WA showroom.
Bends to curvesHolographic & Transparent

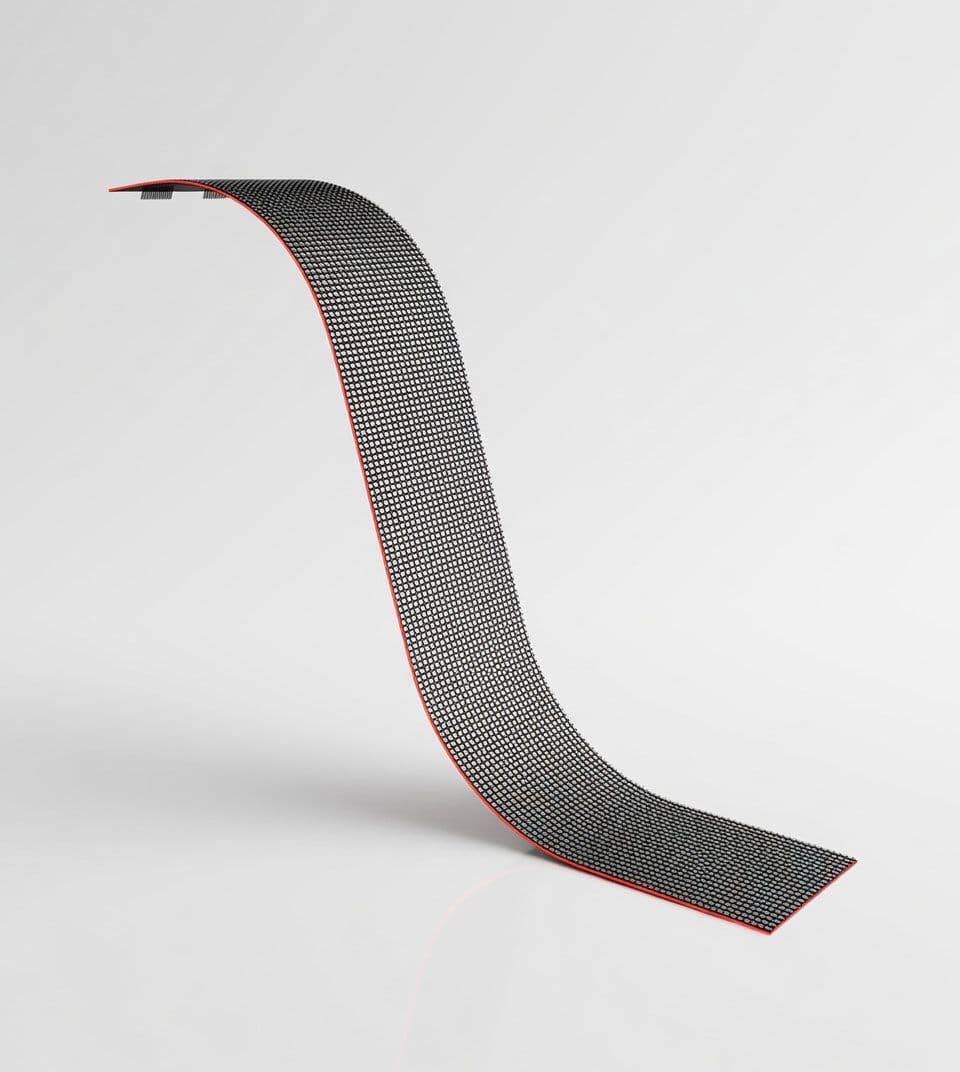

Holographic Flexible Film
